Compare Elmich products by the job they perform: raised decking and pavers, sub-surface drainage, green roofs, stormwater storage, green walls and reinforced grass surfaces.
Malaysia supplySika-authorized sellerTechnical selection support
Application reference image. Product selection and construction details require project review.
Selection logic
Start with the project condition, not the product name.
Each Elmich product sits inside a larger construction build-up. These four inputs narrow the correct product family before model, spacing and accessories are checked.
01Finished surface
Deck board, paver, planting, wall or reinforced turf.
02Build-up and levels
Available height, falls, thresholds, outlets and edges.
03Loads and use
Finish weight, traffic, access and structural limits.
04Water route
Drainage, storage, overflow, irrigation and membrane.
Raised outdoor surfaces
Elmich decking and raised platform systems
Deck boards and pavers can both sit above an accessible cavity, but they use different top connections. The finish, height range, load path, falls and perimeter condition determine the support arrangement.

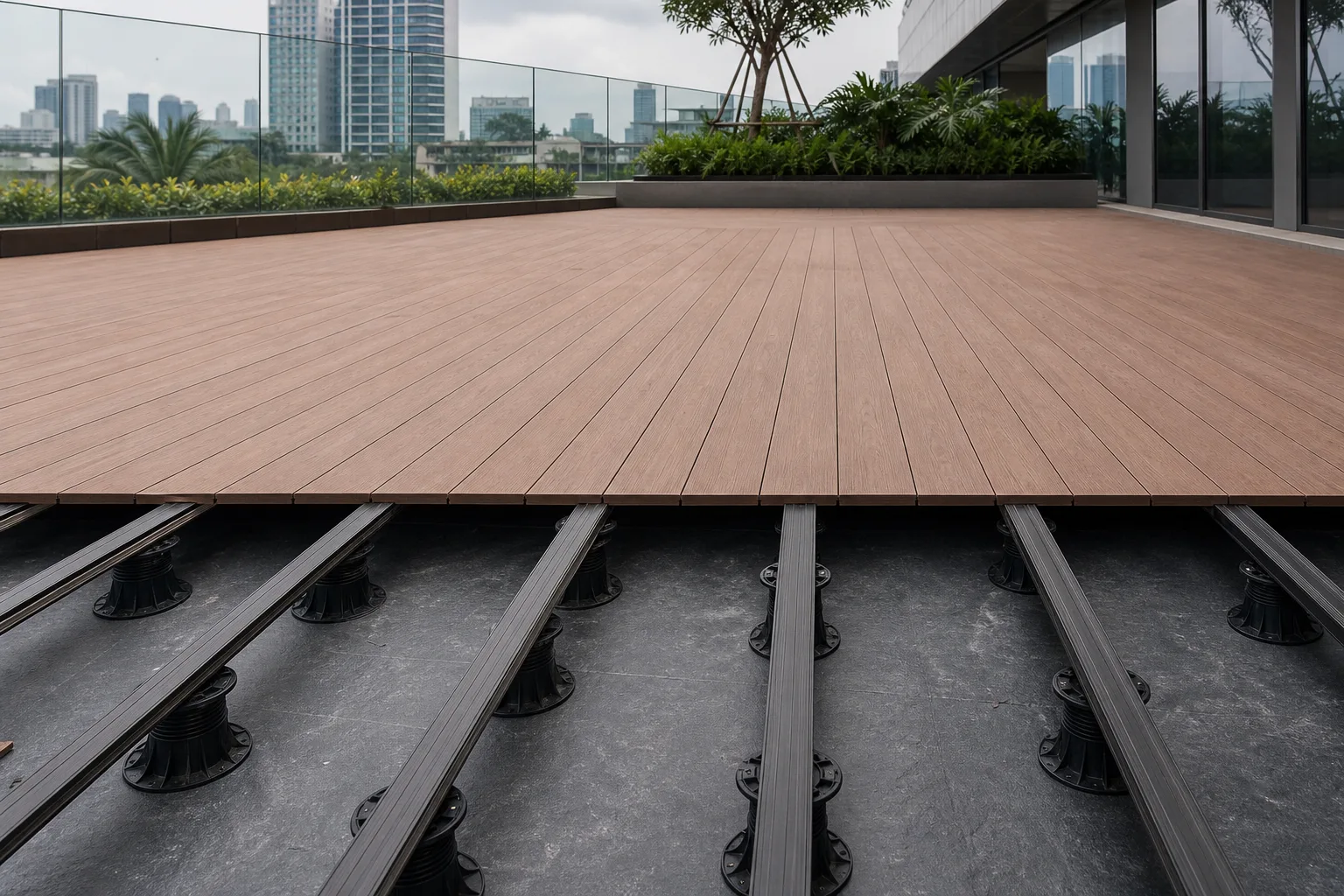

Decking application reference Final joist span, pedestal spacing and loading require current technical data.
Timber and composite finishes
Decking support systems
A coordinated pedestal and aluminium joist arrangement creates a level deck above the structural surface while preserving drainage and access to concealed services.
VersiFrame® Decking
Aluminium joist substructure used with VersiJack® pedestals for timber, composite and compatible deck-board finishes.
VersiJack®
Height- and slope-adjustable pedestal for deck, bearer, beam and raised-floor support.
SpiraPave®
Adjustable pedestal for lower-height raised pavers and suitable timber-bearer or decking layouts.
DeckLink™
Concealed deck-fixing accessory. It is not a pedestal system.

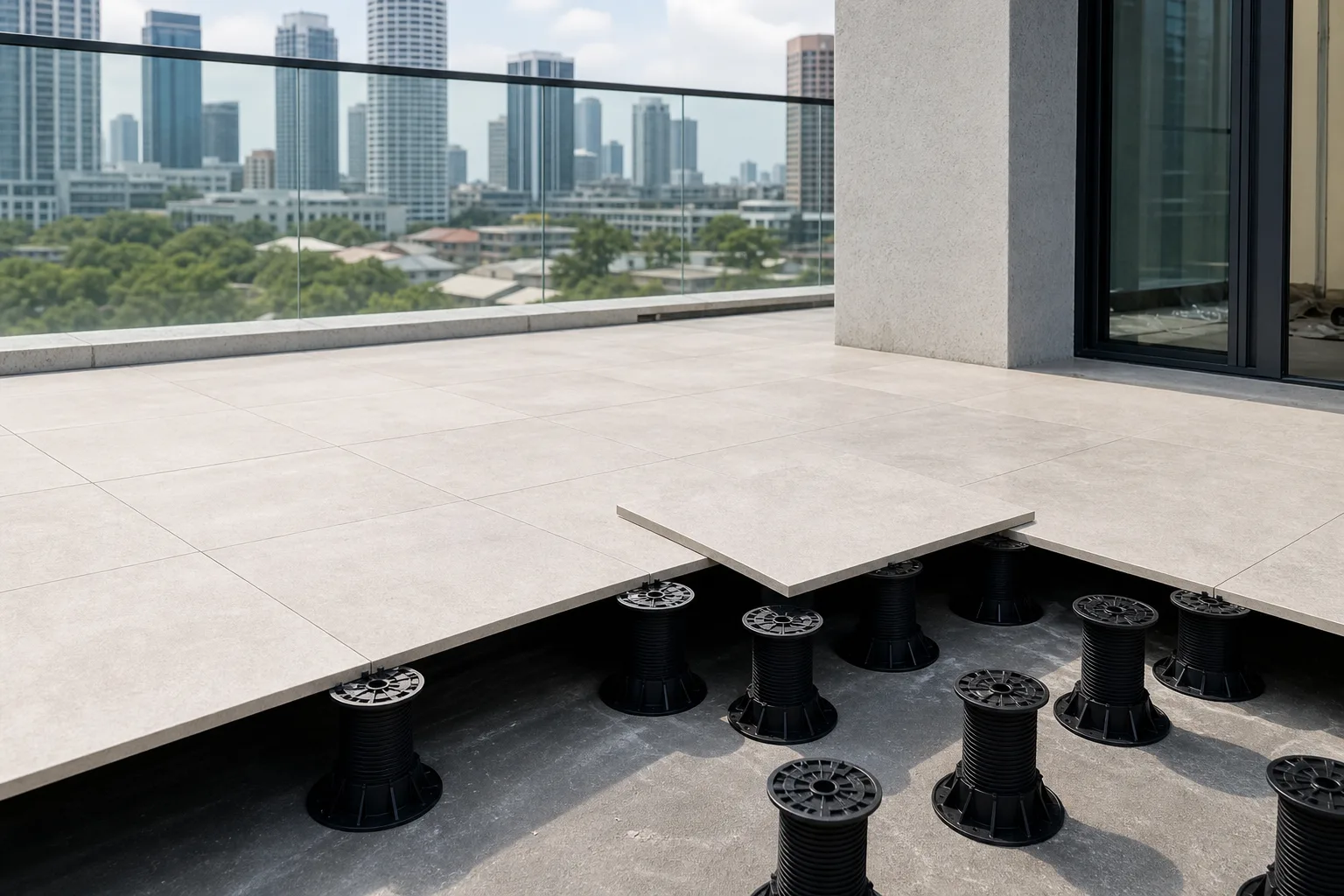

Raised pavers create a serviceable cavity above the deck. Selection depends on paver dimensions, finished levels, edge restraint, traffic and the required adjustment range.
VersiPave®
Paver support for raised terraces, balconies, podiums and other well-drained level finishes.
SpiraPave®
Height- and slope-adjustable pedestal that supports raised pavers as well as suitable decking layouts.
VersiJack®
Adjustable pedestal used where the raised platform needs a broader height range or coordinated accessories.
VersiFrame® Paving
Aluminium joist substructure used with VersiJack® to support suitable paver layouts.
VersiCell drainage cells and VersiDrain green roof systems
These products solve different jobs. VersiCell forms a free-draining void below a compatible build-up; the supplied VersiDrain 150 v2 information describes a modular planting tray with water-retention functions.

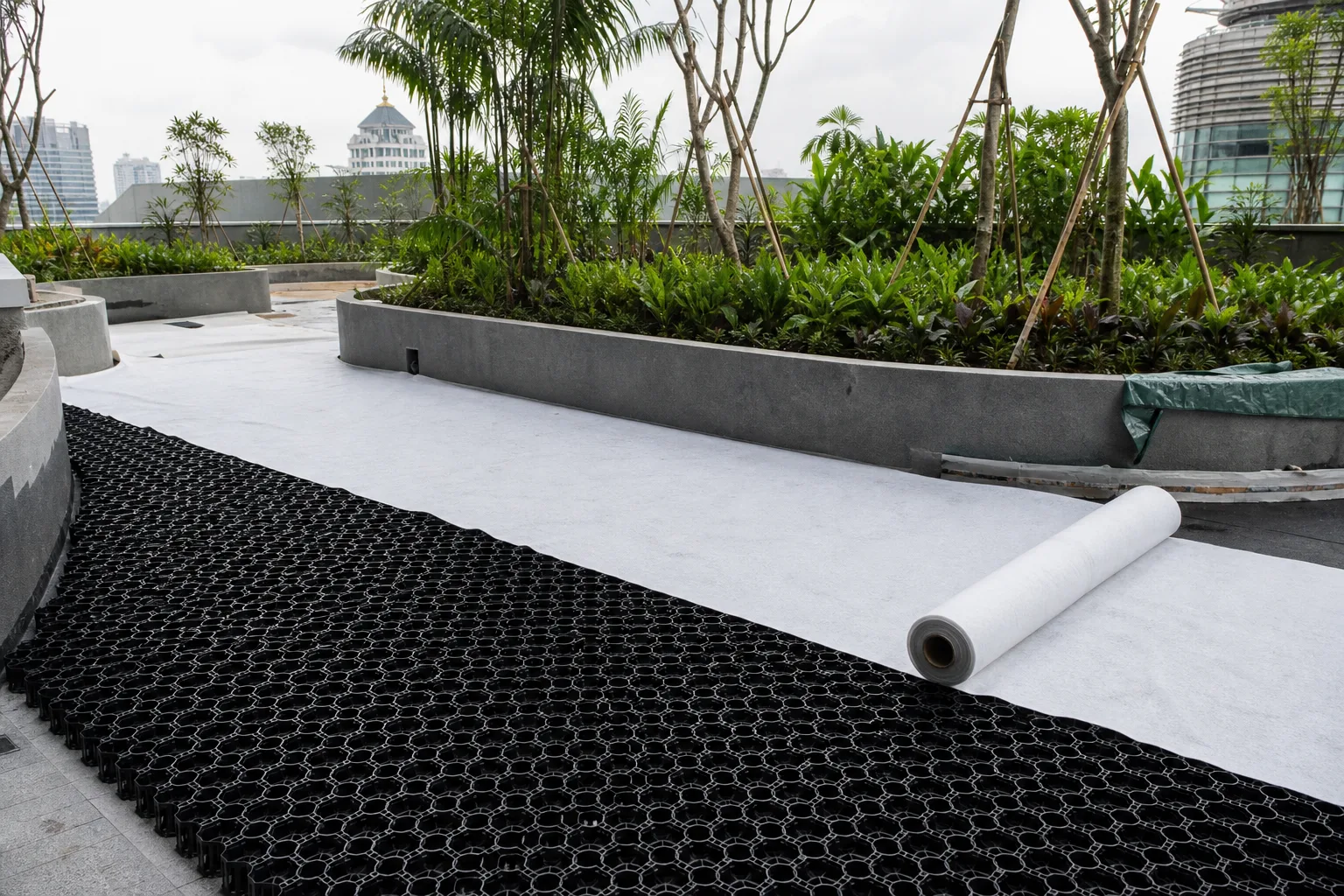

Application reference: modules, filter geotextile and completed planting shown in one installation context.
VersiCell creates a continuous drainage void below suitable landscape, planter and roof-garden build-ups. It works with designed falls, accessible outlets, waterproofing protection and the specified filter layer.

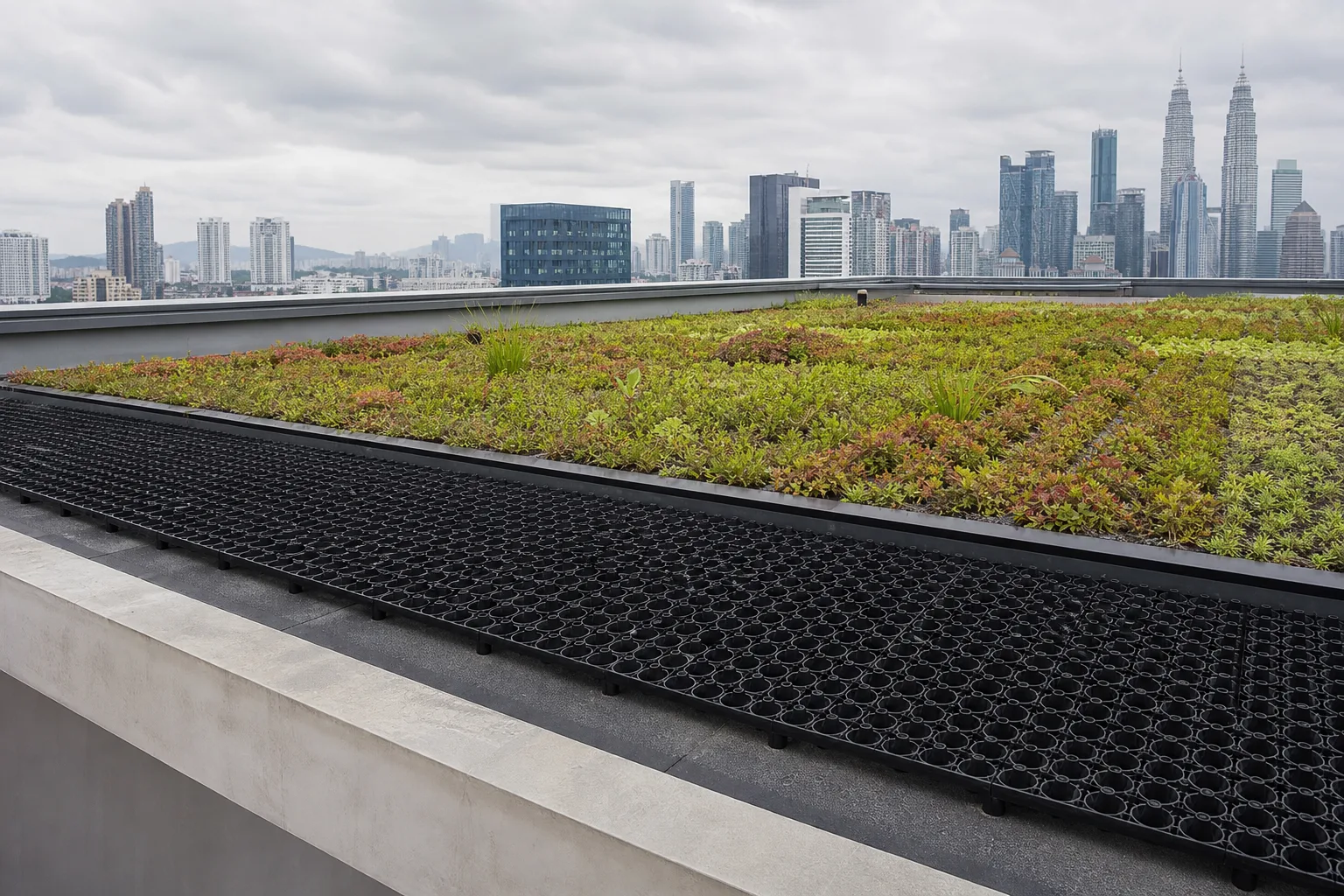

The supplied VersiDrain 150 v2 document covers a modular rooftop planting tray with a defined planting-media zone and water reservoir. Saturated load, planting, irrigation, drainage and overflow still require project review.
01Planting selected for the roof exposure and maintenance plan
02Planting media depth to the project design
03VersiDrain 150 v2 modular tray and water reservoir
04Protection and waterproofing system as specified
05Structural roof with coordinated drainage and overflow
Indicative sequence only. Confirm every layer against the consultant's design and current technical data.
Other Elmich urban systems
Stormwater, green wall and grass paving products
Each family answers a different project brief. The correct enquiry information is shown with each application.
Product reference
Below-ground storage
VersiTank stormwater systems
VersiTank modules form the storage zone within a designed detention, rainwater storage or infiltration system. Tank volume, loading, burial depth, inlet treatment, liner and maintenance access must be engineered for the project.

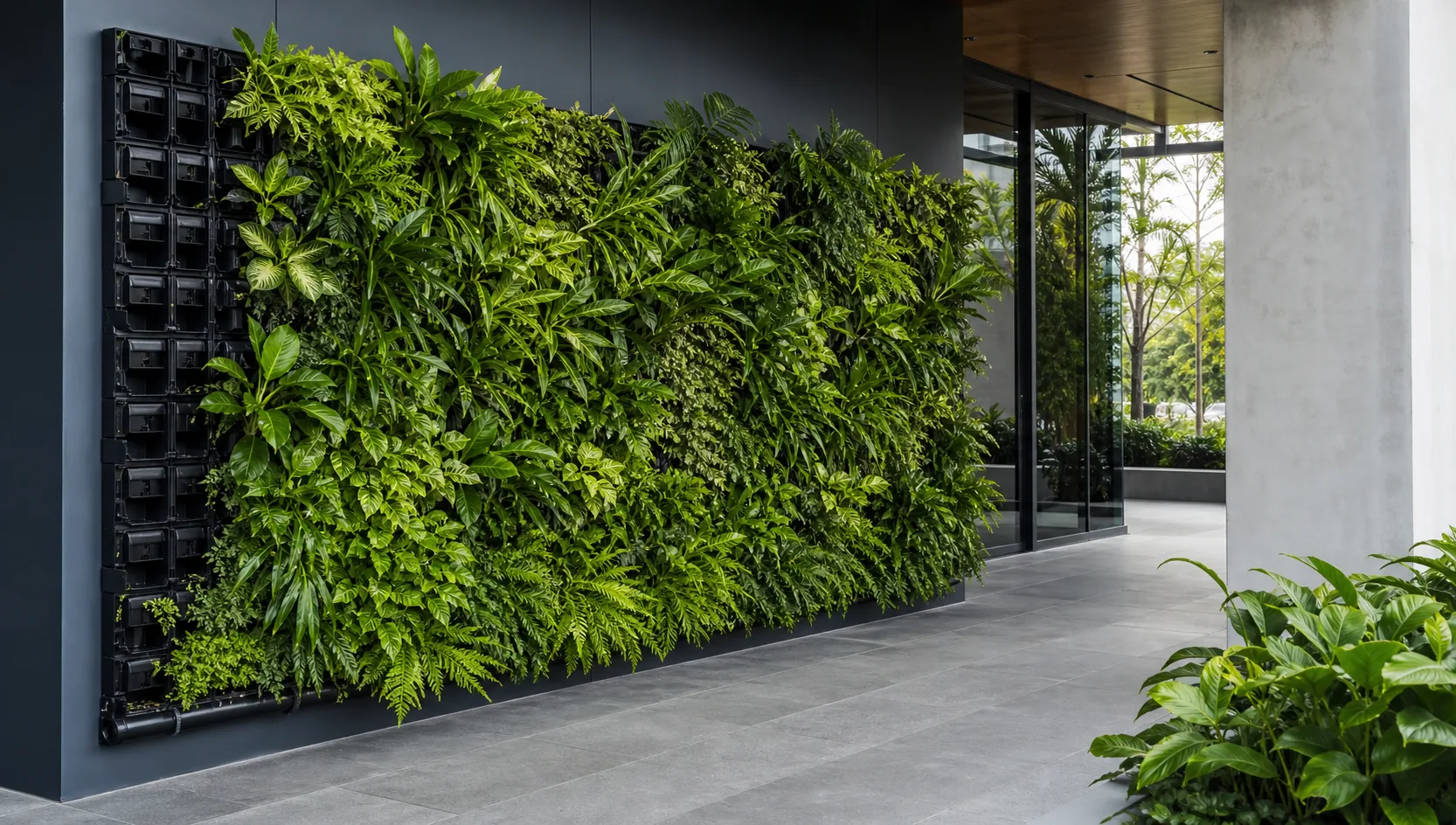

VersiWall uses planted modules mounted to a suitable wall or support frame. The complete system also coordinates irrigation, drainage collection, compatible fixings and safe maintenance access.

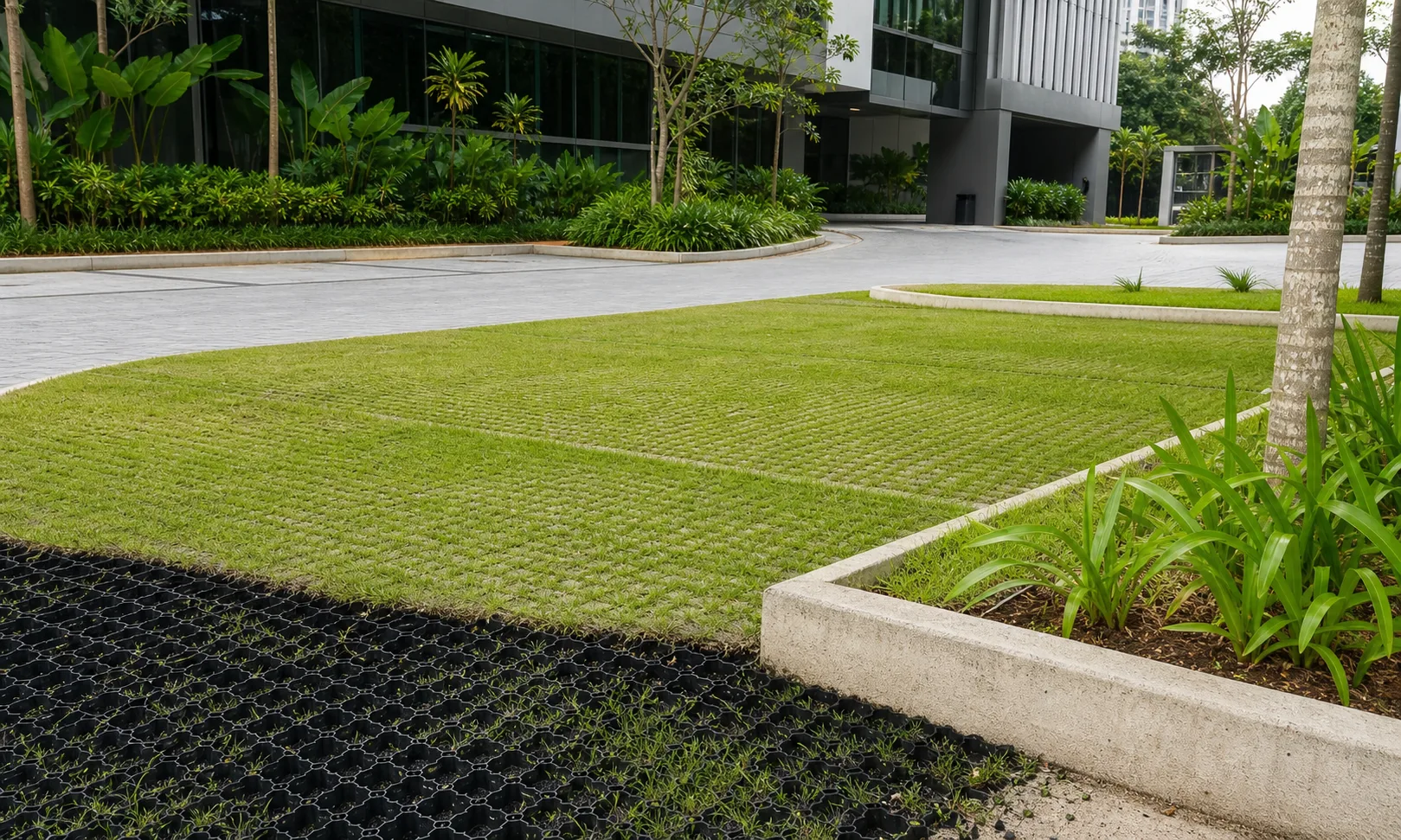

TurfPave reinforces planted or gravel surfaces above a prepared sub-base. Traffic, wheel loading, drainage, edge restraint and planting establish the final build-up.
Parking, access routes and reinforced planted surfaces
Traffic, sub-base, drainage, edge restraint and planting
Documents and evidence
Use the source document before specification.
Current product documents govern model data. Where a current sheet is unavailable, identify the product and project conditions before any technical value is confirmed.
Sika Malaysia, Elmich Urban Greenery Products Selection
Elmich product pages and brochures for VersiJack, SpiraPave, VersiPave and VersiFrame
Vector Mars supplied VersiCell, VersiDrain 150 v2 and VersiWall documents
Technical selection request
Send the build-up, not only a product name.
Include the application, area, finish, available height, expected load, roof falls, outlets and delivery location.
Selection questions
Before choosing an Elmich product
Which Elmich product is used as a drainage cell?
VersiCell is the sub-surface drainage product in the range shown here. The correct model and surrounding layers depend on the application, imposed load, build-up depth, falls and outlet arrangement.
What is the difference between VersiCell and VersiDrain?
VersiCell creates a free-draining void below a landscape or other compatible finish. The supplied VersiDrain 150 v2 document describes a modular planting tray with a planting-media zone and water reservoir. They perform different jobs within a roof or landscape build-up.
Which Elmich pedestal supports decking and raised pavers?
VersiJack supports both raised decking and paving arrangements. SpiraPave also supports raised pavers and suitable timber-bearer layouts. VersiPave is intended for raised pavers, while VersiFrame is an aluminium joist substructure used with VersiJack.
Can this product overview be used as a construction specification?
No. This page helps narrow the product family. Final model selection, spacing, loading, accessories, membranes and installation details must follow current technical documents and the project consultant's design.
