VersiCell Drainage
Cell Malaysia
Lightweight sub-soil drainage for roofs, podiums and landscapes.

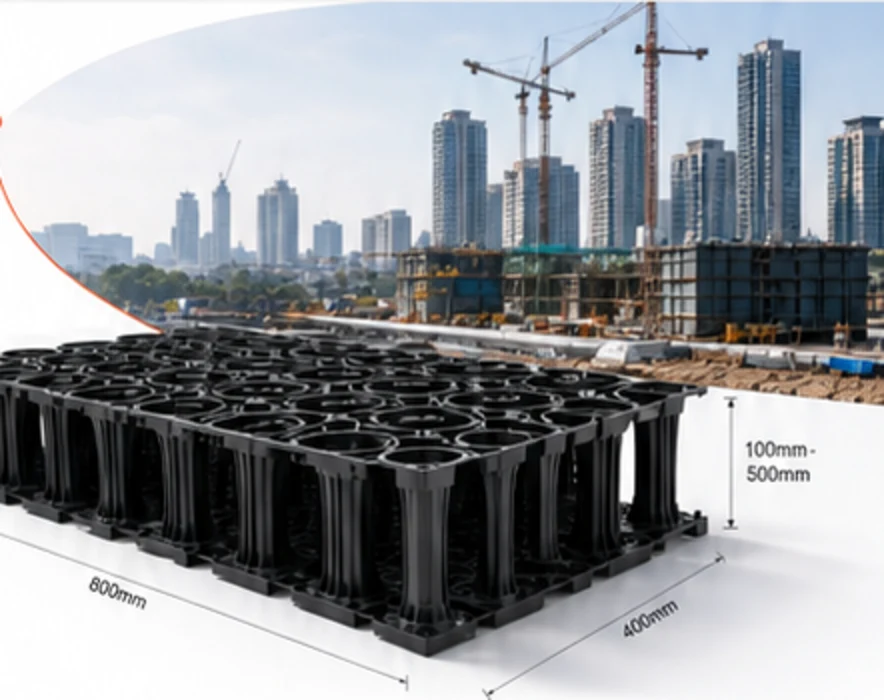

Choose the Right VersiCell
| Model | Product | Module size | Weight | Maximum compressive strength | Discharge at 1% gradient |
|---|---|---|---|---|---|
| VersiCell 2050 |  | 500 x 500 mm | Approx. 2.0 kg/m² | 800 kN/m² | Approx. 13.0 L/m.s |
| VersiCell 3025 | | 500 x 500 mm | Approx. 2.5 kg/m² | 800 kN/m² | Approx. 16.5 L/m.s |
| VersiCell 3050 | | 500 x 500 mm | Approx. 2.5 kg/m² | 800 kN/m² | Approx. 16.5 L/m.s |
| VersiCell 3150 | | 500 x 500 mm | Approx. 2.0 kg/m² | 600 kN/m² | Approx. 16.5 L/m.s |
Published values are taken from the supplied Elmich VersiCell product sheet. Confirm the selected model and current document revision before specification or purchase.
Typical application

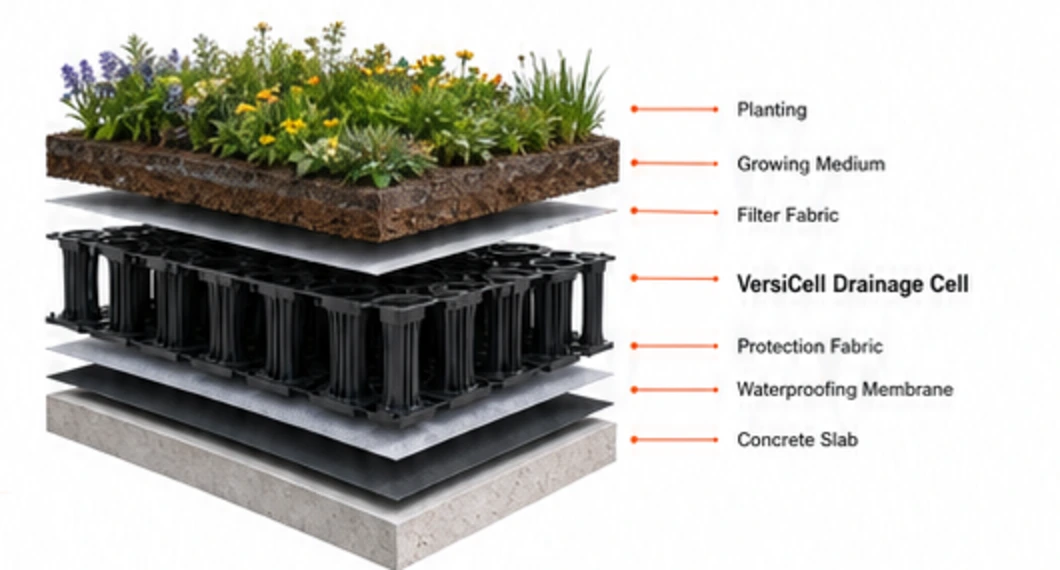

Green Roof
Build-Up
VersiCell creates a drainage void below the filter layer and growing medium. The complete build-up must also protect the waterproofing and keep outlets accessible.
Technical Data
| Material | Polypropylene |
|---|---|
| Surface void | Approx. 62% |
| Internal void | Approx. 95% |
| Document edition | VC/001-V6-0124SG |
Before Ordering VersiCell
- Confirm the imposed load and final surface build-up.
- Detail geotextile laps so soil cannot migrate into the drainage layer.
- Keep roof outlets accessible for inspection and maintenance.
- Coordinate drainage falls and waterproofing before installation.

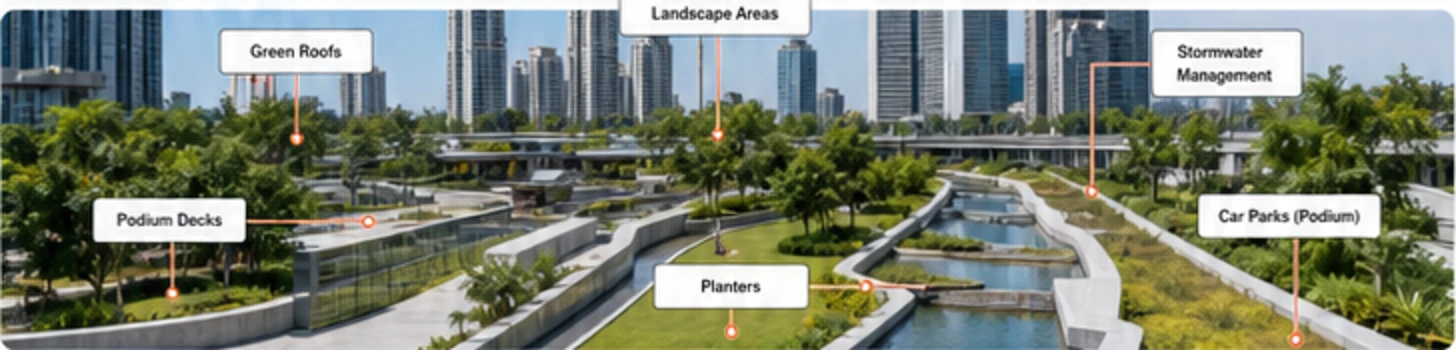

Common Applications
Frequently Asked Questions
What is a VersiCell drainage cell used for?
Typical applications include green roofs, planter boxes, landscaped decks, retaining walls and selected artificial grass build-ups where system compatibility is confirmed and water has a clear route to the outlet.
Does VersiCell replace waterproofing?
No. VersiCell is a drainage component installed above or beside a protected waterproofing system. The membrane, protection and drainage details remain separate design responsibilities.
What should I send for a VersiCell quotation?
Send the area, build-up section, expected load, outlet layout, required model if known, quantity and delivery location.
Which VersiCell model should I use?
Select the model only after checking the application, imposed load, drainage rate, available build-up depth and current project drawing. Send those details to Vector Mars for a product check before ordering.
Can VersiCell be used for vertical drainage?
The supplied product information includes horizontal and vertical sub-surface drainage applications. The membrane protection, fixing, outlet and edge details still need to suit the actual wall or retaining structure.
Need a proposal or technical advice for your project?
Send the area, build-up, quantity and delivery location.
